Diesel Engine Parts Fuel Injection Pump 3070123 for NT855 4009414 3059658 Fuel Pump Construction Machinery

Large Image : Diesel Engine Parts Fuel Injection Pump 3070123 for NT855 4009414 3059658 Fuel Pump Construction Machinery

Product Details:

Place of Origin:	USA
Brand Name:	CUMMINS
Certification:	ISO Contact: 86+ 19959162250
Model Number:	3070123

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$60-$100
Packaging Details:	Original Packing
Delivery Time:	3-5 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union,
Supply Ability:	1000

Contact Now

Detailed Product Description

OE NO:	CUMMINS INJECTOR	Product Name:	3070123
OE NO1:	4009414	Contact:	Contact: 86+ 19959162250
Warranty:	12 Months	Quality:	Brand New Genuine
SIZE:	Origional Standard	Type:	Auto Parts
AppliC-A-Tion:	Fuel Injection System	Material:	High Speed Steel
Highlight:	Cummins diesel fuel injection pump , NT855 fuel pump replacement , construction machinery fuel pump

Diesel Engine Parts Fuel Injection Pump 3070123 for NT855 4009414 3059658 Fuel Pump Construction Machinery

Product Description:

Number	3070123
OEM NO	4009414
AppliC-A-Tion	C-UMMINS INJECTOR
Payment Term	T/T, L/C, Western

Table 1: Basic Parameters

Parameter	Details
Part No.	3070123
Engine Series	C-ummins NT855 Series (PT Fuel System Mechanical Engines)
Type	Mechanical PT Injector (PTD Type, No STC)
Structure	Plunger-type, Cam-driven, Cylinder, Flangeless
Net Weight	1.55 kg
Dimensions	205mm × 58mm × 58mm
Material	Body: Alloy Cast Iron; Parts: Hardened High-Speed Steel

Table 2: Performance Specifications

Parameter	Details
Fuel System	PT (Pressure-Time) Low-Pressure System
Opening Pressure	135–145 bar (1960–2100 PSI)
Flow Rate	320–335 cc/min @ 100 PSI
Nozzle	8-Hole × 0.24mm, Spray Angle 155°
Timing Control	Purely Mechanical, Direct Cam Drive
Fuel Standard	China I/II Diesel, 0# / -10# / -20#
Temp Range	-30℃ to +115℃
Seals	2× Fluororubber O-Rings, Copper Gasket
Actuation	Camshaft, Tappet & Pushrod Mechanism

Table 3: Application & Installation

Parameter	Details
Engine Fit	C-ummins NT855 (14.0L Inline 6-Cyl, Turbocharged & Aftercooled)
Bore × Stroke	139.7mm × 152.4mm
Power Range	350–450 HP
Torque Range	1650–1950 N·m
Install Torque	Retaining Nut: 60–65 N·m
Gasket	3077265 (Copper, Single-Use Only)
Install Notes	Clean Fuel Passages, Replace All Seals, Calibrate Plunger Lift
Applications	Heavy Trucks, Construction, Mining, Marine, Gen-Sets

Table 4: Quality & Warranty

Parameter	Details
Grade	New Original / OEM Remanufactured
Factory Test	100% Flow, Pressure, Leakage & Atomization Test
Warranty	New: 12 Months; Reman: 6 Months
Standard	C-ummins Original, ISO 9001:2015
Packing	Single Box, Anti-Rust Oil, Shock-Proof Foam
MOQ	1 PC
Common Failures	Poor Atomization, Dripping, Hard Start, Black Smoke, Low Power
Void Conditions	Contaminated Fuel, Overpressure, Unauthorized Disassembly

Why choose us?

1.Super Value - Our rich experience help you increase profit on cost advantage.

2.We have our own professional forwarding agent: Fast delivery, serve good.

3.Our feedback: You always can get our feedback within 24 hours.

4.After sending, we will track the products for you once every two days, until you get the products.

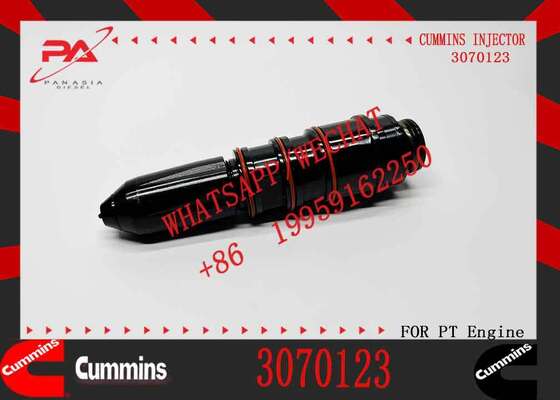

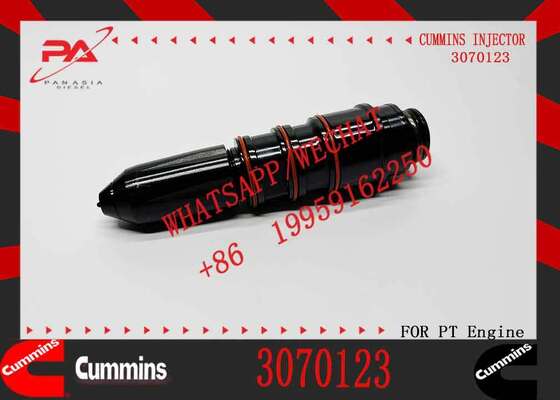

PRODUCTS PICTURE: Diesel Engine Parts Fuel Injection Pump 3070123 for NT855 4009414 3059658 Fuel Pump Construction Machinery 0

Diesel Engine Parts Fuel Injection Pump 3070123 for NT855 4009414 3059658 Fuel Pump Construction Machinery 3
