Generator Diesel Engine N14 Fuel Injector 3407776 3409975 4902924 3081315F 3083846T 3083848F 3087560 3087733 3087807 6087807

Large Image : Generator Diesel Engine N14 Fuel Injector 3407776 3409975 4902924 3081315F 3083846T 3083848F 3087560 3087733 3087807 6087807

Product Details:

Place of Origin:	USA
Brand Name:	CUMMINS
Certification:	ISO Contact: 86+ 19959162250
Model Number:	3081315F

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$60-$100
Packaging Details:	Original Packing
Delivery Time:	3-5 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union,
Supply Ability:	1000

Contact Now

Detailed Product Description

OE NO:	CUMMINS INJECTOR	Product Name:	3081315F
OE NO1:	3409975	Contact:	Contact: 86+ 19959162250
Warranty:	12 Months	Quality:	Brand New Genuine
SIZE:	Origional Standard	Type:	Auto Parts
AppliC-A-Tion:	Fuel Injection System	Material:	High Speed Steel
Highlight:	Cummins N14 diesel fuel injector , Cummins diesel injector with warranty , Cummins fuel injector replacement parts

Generator Diesel Engine N14 Fuel Injector 3407776 3409975 4902924 3081315F 3083846T 3083848F 3087560 3087733 3087807 6087807

Product Description:

Number	3081315F
OEM NO	3409975
AppliC-A-Tion	C-UMMINS INJECTOR
Payment Term	T/T, L/C, Western

Table 1: Basic Parameters

Parameter	Details
Part No.	3081315F
Engine Series	C-ummins N14 (14L) Celect, Celect Plus E-Controlled Engines
Type	Electronic Unit Injector (EUI), Celect Electronic Control
Structure	Integrated Solenoid Actuator, Plunger Boost, Top Outlet, Side Electrical Connector
Net Weight	1.68 kg (3.71 lbs)
Dimensions	254mm × 55mm × 55mm
Material	Body: Forged Steel; Components: Hardened Alloy; Solenoid: High Permeability Stainless Steel

Table 2: Performance Specifications

Parameter	Details
Control	ECM Electronic Control (12V Solenoid), Closed-Loop Timing & Flow
Opening Pressure	240–260 bar (3480–3770 PSI)
Flow Rate	380–400 cc/min @ 100 PSI
Nozzle	9-Hole × 0.22mm, Spray Angle 145°
Fuel System	Low-Pressure PT Feed + Unit Injector High-Pressure Generation
Fuel	China II/III Diesel, 0# / -10# / -20#
Temp Range	-40℃ to +120℃
Seals	3× Fluororubber O-Rings, Copper Gasket, High-Temp Dust Seal
Electrical	2-Pin Deutsch Connector, IP67 Protection

Table 3: Application & Installation

Parameter	Details
Engine Fit	C-ummins N14 (14.0L Inline 6-Cyl, Turbocharged & Aftercooled)
Bore × Stroke	139mm × 152mm
Power Range	435–525 HP
Torque Range	1900–2300 N·m
Install Torque	Mounting Bolts: 65–75 N·m
Gasket	3069169 (Copper, Single-Use Only)
Install Notes	Deep Clean Fuel Passages, Replace All Seals, ECM Recalibration
Applications	Heavy-Duty Trucks, Construction, Mining, Marine, Gen-Sets

Table 4: Quality & Warranty

Parameter	Details
Grade	New Original / OEM Remanufactured (RX/R Suffix)
Factory Test	100% Flow, Pressure, Response, Atomization, Leakage & Durability Test
Warranty	New: 12 Months; Reman: 6–12 Months
Standard	C-ummins Celect Original, ISO 9001:2015
Packing	Single Box, Anti-Rust Oil, Shock-Proof Foam, Anti-Static Bag
MOQ	1 PC
Common Failures	Slow Response, Poor Atomization, Dripping, Black Smoke, Low Power, Rough Idle
Void Conditions	Bad Fuel, Contamination, Overpressure, Water Damage, Disassembly, Uncalibrated Programming

Why choose us?

1.Quality is culture - professional trading experience help you solve any problem.

2.We have our own professional forwarding agent: Fast delivery, serve good.

3.Our feedback: You always can get our feedback within 24 hours.

4.After sending, we will track the products for you once every two days, until you get the products.

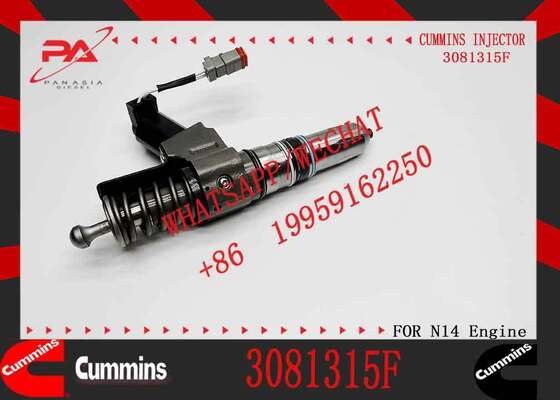

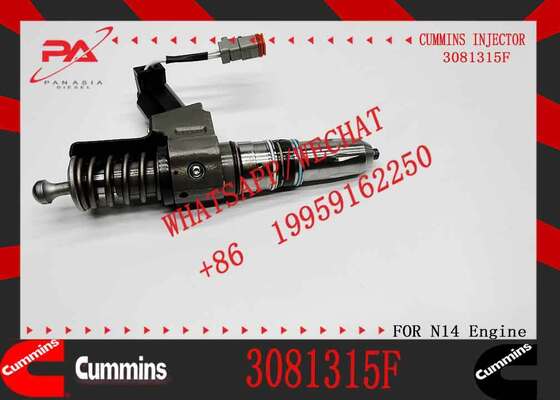

PRODUCTS PICTURE:

Generator Diesel Engine N14 Fuel Injector 3407776 3409975 4902924 3081315F 3083846T 3083848F 3087560 3087733 3087807 6087807 0
