C3512B Common Rail Diesel Engine Injector Model 392-6214 389-1969 379-0509 386-1771 10R-3255 386-1754 386-1758

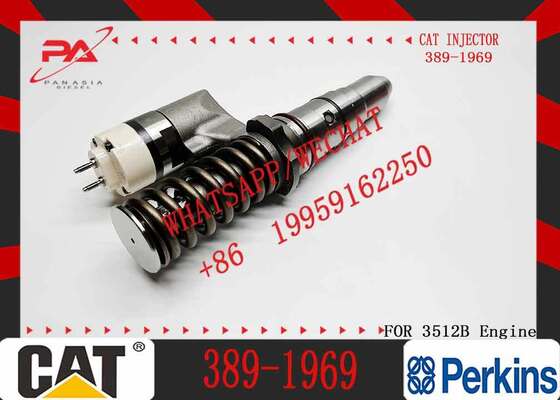

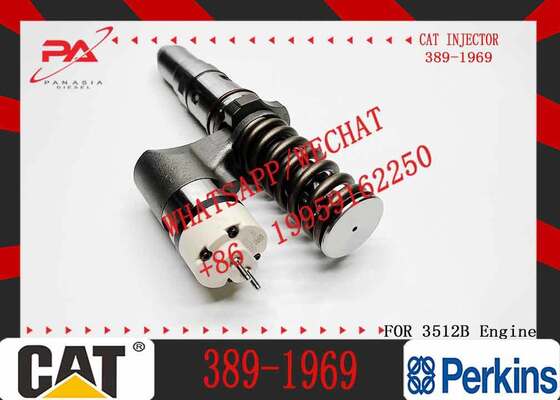

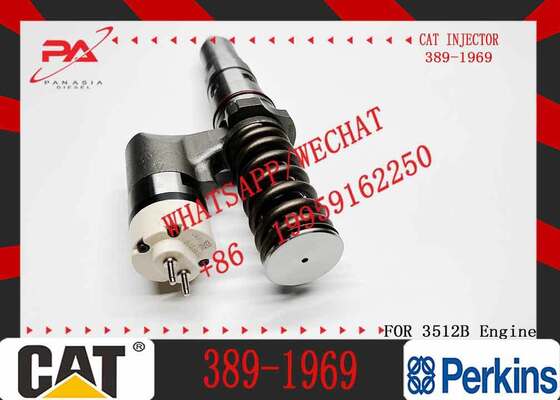

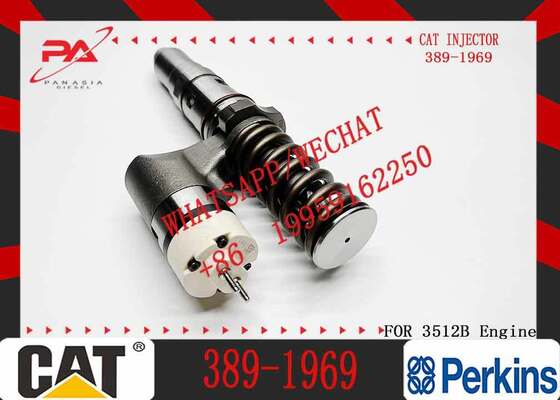

Large Image : C3512B Common Rail Diesel Engine Injector Model 392-6214 389-1969 379-0509 386-1771 10R-3255 386-1754 386-1758

Product Details:

Place of Origin:	USA
Brand Name:	C-A-TERPILLA
Certification:	Contact: 86+ 19959162250
Model Number:	389-1969

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$400-$550
Packaging Details:	Original Packing
Delivery Time:	3-5 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, , Western Union
Supply Ability:	1000

Contact Now

Detailed Product Description

Product Name:	C-A-Terpillar Injector	OE NO:	389-1969
OE NO1:	386-1771	Warranty:	12 Months
Contact:	86+ 19959162250	Quality:	Brand New Genuine
Car Model:	C-A-T ENGINE	AppliC-A-Tion:	Fuel Injection System
Material:	High Speed Steel	Type:	Trck
SIZE:	Origional Standard
Highlight:	Caterpillar diesel injector with warranty , Common rail injector model C3512B , Caterpillar fuel injector 10R-3255

Parts	389-1969
OEM NO	386-1771
Powerplant	nozzle
Payment term	T/T,Western Union

1.Basic Information

Item	Details
Genuine Part Number	389-1969
Product Name	C-aterpillar Diesel Fuel Injector Assembly (Fuel Injector GP)
Fit Engine	CAT 3512B series diesel engines, compatible with 3512B-BEUI and 3512B-HD models
Application Equipment	Large generator sets, marine main engines, mining excavators, heavy construction equipment, oilfield equipment
Structure Type	Hydraulic Electronic Unit Injector (HEUI), precisely controlled by ECU, suitable for high-pressure fuel systems
Fuel Type	Low-sulfur diesel (meets ASTM D975 and EN 590 standards), compatible with National III / Euro III emission requirements

2. Technical Parameters

Item	Parameters
Operating Pressure	Fuel injection pressure: 28-32 MPa; Hydraulic control pressure: 10-14 MPa (suitable for 3512B original system)
Rated Fuel Injection Quantity	Single-cycle fuel injection quantity: 220-260 mm³ (meets original factory calibration, suitable for engine power requirements)
Flow Rate Deviation	Flow rate deviation of injectors in the same set ≤ ±1.5%, ensuring uniform engine power and stable fuel consumption
Net Weight	Approx. 1.6 kg (per unit); Gross Weight: Approx. 1.8 kg (including independent packaging)
Overall Dimensions	Length × Width × Height: 260 mm × 130 mm × 135 mm (measured dimensions, suitable for original installation position)
Operating Temperature	Ambient temperature: -40℃ ～ +135℃; Fuel temperature: -20℃ ～ +120℃
Mounting Torque	65-75 N·m (tighten according to original factory standards to avoid thread damage due to over-tightening or leakage due to under-tightening)
Electrical Parameters	Control voltage: 12V DC; Coil resistance: 2.8-3.2 Ω (meets ECU control specifications)

3. Structure & Material

Item	Details
Body Material	High-strength forged alloy steel shell,经过 quenching and tempering treatment, tensile strength ≥ 800 MPa, impact-resistant and corrosion-resistant
Plunger & Barrel	Tungsten-chromium alloy material, precision ground and paired, fit clearance ≤ 0.002 mm, wear-resistant, extending service life
Nozzle Assembly	Multi-hole nozzle (6-8 spray holes), made of high-temperature resistant hard alloy, spray hole precision ≤ 0.01 mm, uniform atomization effect
Sealing Structure	Dual sealing design: Upper O-ring rubber seal (oil-resistant and high-temperature resistant), lower red copper gasket (excellent sealing performance, preventing fuel leakage)
Control Assembly	Imported solenoid valve core, response time ≤ 5ms, sensitive action, ensuring accurate injection timing and adapting to all engine operating conditions
Surface Treatment	Cathodic electrophoresis + anti-rust coating, salt spray test ≥ 48 hours, effectively resisting moisture and oil pollution corrosion, adapting to harsh working environments

About Us:

1.We are very glad that customer give us some suggestion for price and products.

2.We have our own professional forwarding agent: Fast delivery, serve good.

3.Our feedback: You always can get our feedback within 24 hours.

4.After sending, we will track the products for you once every two days, until you get the products.

Packing&Shipping:

C3512B Common Rail Diesel Engine Injector Model 392-6214 389-1969 379-0509 386-1771 10R-3255 386-1754 386-1758 0

C3512B Common Rail Diesel Engine Injector Model 392-6214 389-1969 379-0509 386-1771 10R-3255 386-1754 386-1758 3
