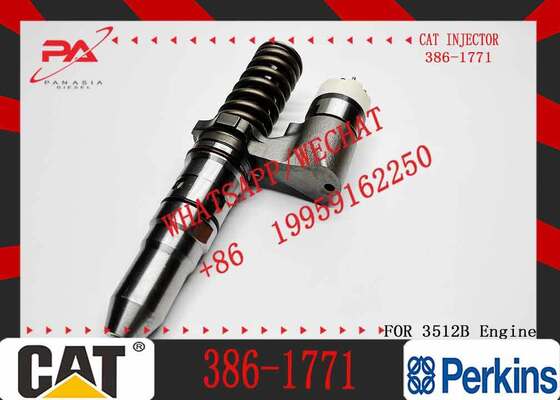

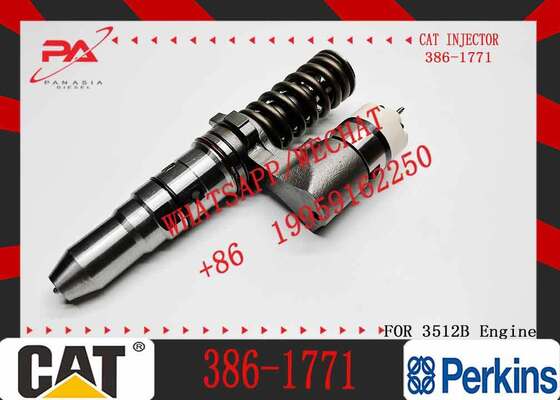

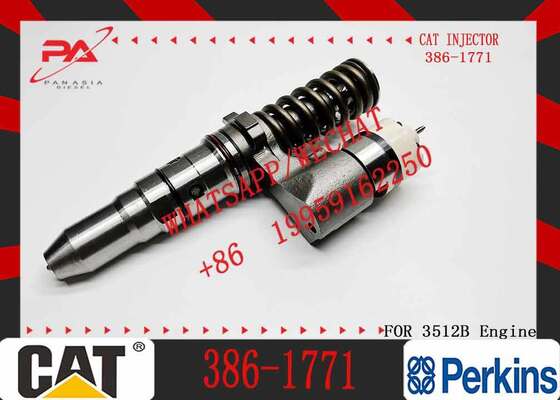

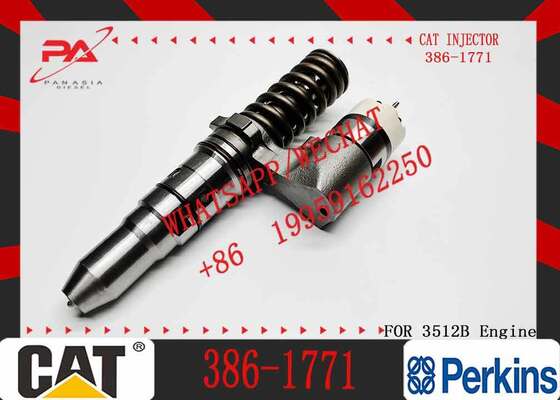

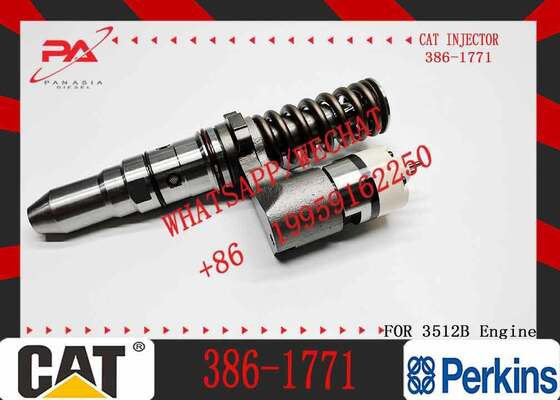

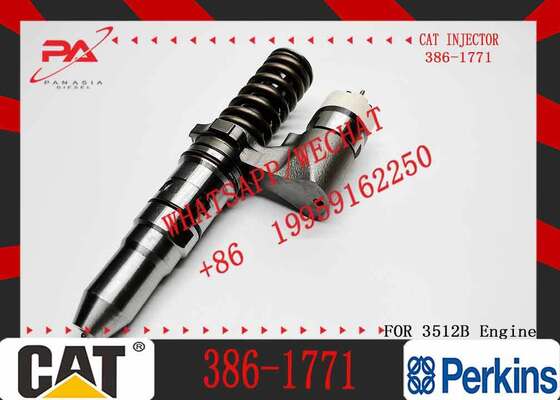

C3512B Common Rail Diesel Engine Injector Model 392-6214 389-1969 379-0509 386-1771 10R-3255 386-1754 386-1758

Basic Properties
Place of Origin: USA
Brand Name: C-A-TERPILLA
Certification: Contact: 86+ 19959162250
Model Number: 386-1771
Trading Properties
Minimum Order Quantity: 1
Price: $400-$550
Payment Terms: L/C, D/A, D/P, T/T, Western Union, , Western Union
Supply Ability: 1000
Tags

10R-7224 Diesel Engine Fuel Injector

387-9433 Diesel Engine Fuel Injector

387-9437 C-A-TERPILLAR Diesel Fuel Injectors
Product Summary
C3512B Common Rail Diesel Engine Injector Model 392-6214 389-1969 379-0509 386-1771 10R-3255 386-1754 386-1758 Product Description: Parts 386-1771 OEM NO 392-6214 Powerplant nozzle Payment term T/T,Western Union 1.Basic Information Item Details Genuine Part Number 386-1771 Product Name C-aterpillar ...

Product Details

Highlight:

CATERPILLAR diesel fuel injector with warranty

,

C3512B common rail diesel injector

,

Diesel engine injector model 392-6214
Product Name: C-A-Terpillar Injector
OE NO: 386-1771
OE no1: 392-6214
Warranty: 12 Months
Contact: 86+ 19959162250
Quality: Brand New Genuine
Car Model: C-A-T ENGINE
AppliC-A-Tion: Fuel Injection System
Material: High Speed Steel
Type: Trck
SIZE: Origional Standard
Product Description

C3512B Common Rail Diesel Engine Injector Model 392-6214 389-1969 379-0509 386-1771 10R-3255 386-1754 386-1758



Product Description:

Parts

386-1771
OEM NO

392-6214
Powerplant

nozzle
Payment term T/T,Western Union





1.Basic Information

Item Details
Genuine Part Number 386-1771
Product Name C-aterpillar Diesel Fuel Injector Assembly (Fuel Injector GP)
Fit Engine CAT 3512B series diesel engines, compatible with 3512B-BEUI and 3512B-HD models
Application Equipment Large generator sets, marine main engines, mining excavators, heavy construction equipment, oilfield equipment
Structure Type Hydraulic Electronic Unit Injector (HEUI), precisely controlled by ECU, suitable for high-pressure fuel systems
Fuel Type Low-sulfur diesel (meets ASTM D975 and EN 590 standards), compatible with National III / Euro III emission requirements



2. Technical Parameters

Item Parameters
Operating Pressure Fuel injection pressure: 28-32 MPa; Hydraulic control pressure: 10-14 MPa (suitable for 3512B original system)
Rated Fuel Injection Quantity Single-cycle fuel injection quantity: 220-260 mm³ (meets original factory calibration, suitable for engine power requirements)
Flow Rate Deviation Flow rate deviation of injectors in the same set ≤ ±1.5%, ensuring uniform engine power and stable fuel consumption
Net Weight Approx. 1.6 kg (per unit); Gross Weight: Approx. 1.8 kg (including independent packaging)
Overall Dimensions Length × Width × Height: 260 mm × 130 mm × 135 mm (measured dimensions, suitable for original installation position)
Operating Temperature Ambient temperature: -40℃ ～ +135℃; Fuel temperature: -20℃ ～ +120℃
Mounting Torque 65-75 N·m (tighten according to original factory standards to avoid thread damage due to over-tightening or leakage due to under-tightening)
Electrical Parameters Control voltage: 12V DC; Coil resistance: 2.8-3.2 Ω (meets ECU control specifications)



3. Structure & Material

Item Details
Body Material High-strength forged alloy steel shell,经过 quenching and tempering treatment, tensile strength ≥ 800 MPa, impact-resistant and corrosion-resistant
Plunger & Barrel Tungsten-chromium alloy material, precision ground and paired, fit clearance ≤ 0.002 mm, wear-resistant, extending service life
Nozzle Assembly Multi-hole nozzle (6-8 spray holes), made of high-temperature resistant hard alloy, spray hole precision ≤ 0.01 mm, uniform atomization effect
Sealing Structure Dual sealing design: Upper O-ring rubber seal (oil-resistant and high-temperature resistant), lower red copper gasket (excellent sealing performance, preventing fuel leakage)
Control Assembly Imported solenoid valve core, response time ≤ 5ms, sensitive action, ensuring accurate injection timing and adapting to all engine operating conditions
Surface Treatment Cathodic electrophoresis + anti-rust coating, salt spray test ≥ 48 hours, effectively resisting moisture and oil pollution corrosion, adapting to harsh working environments
